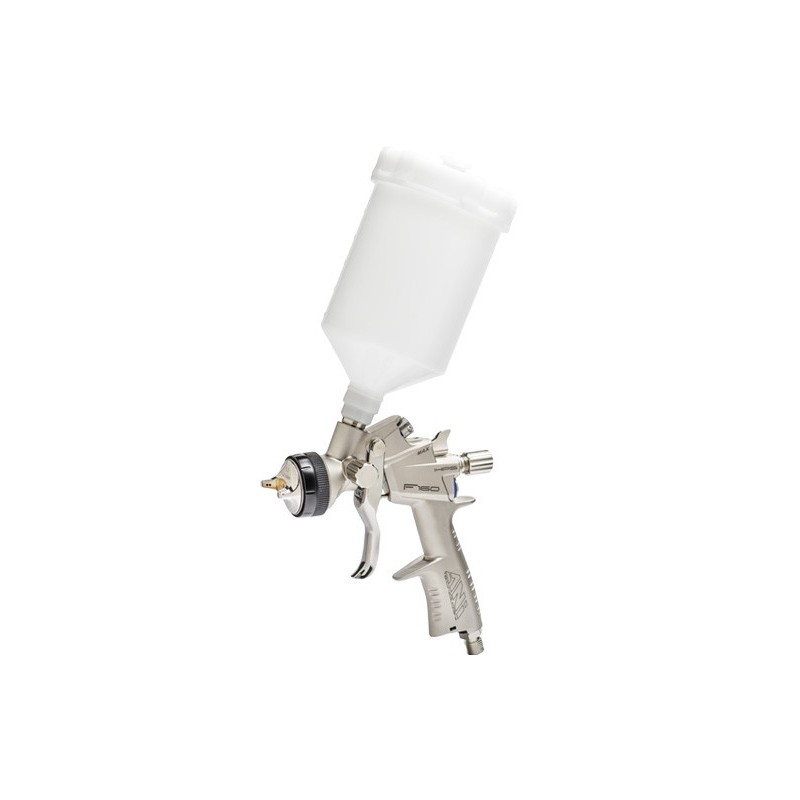

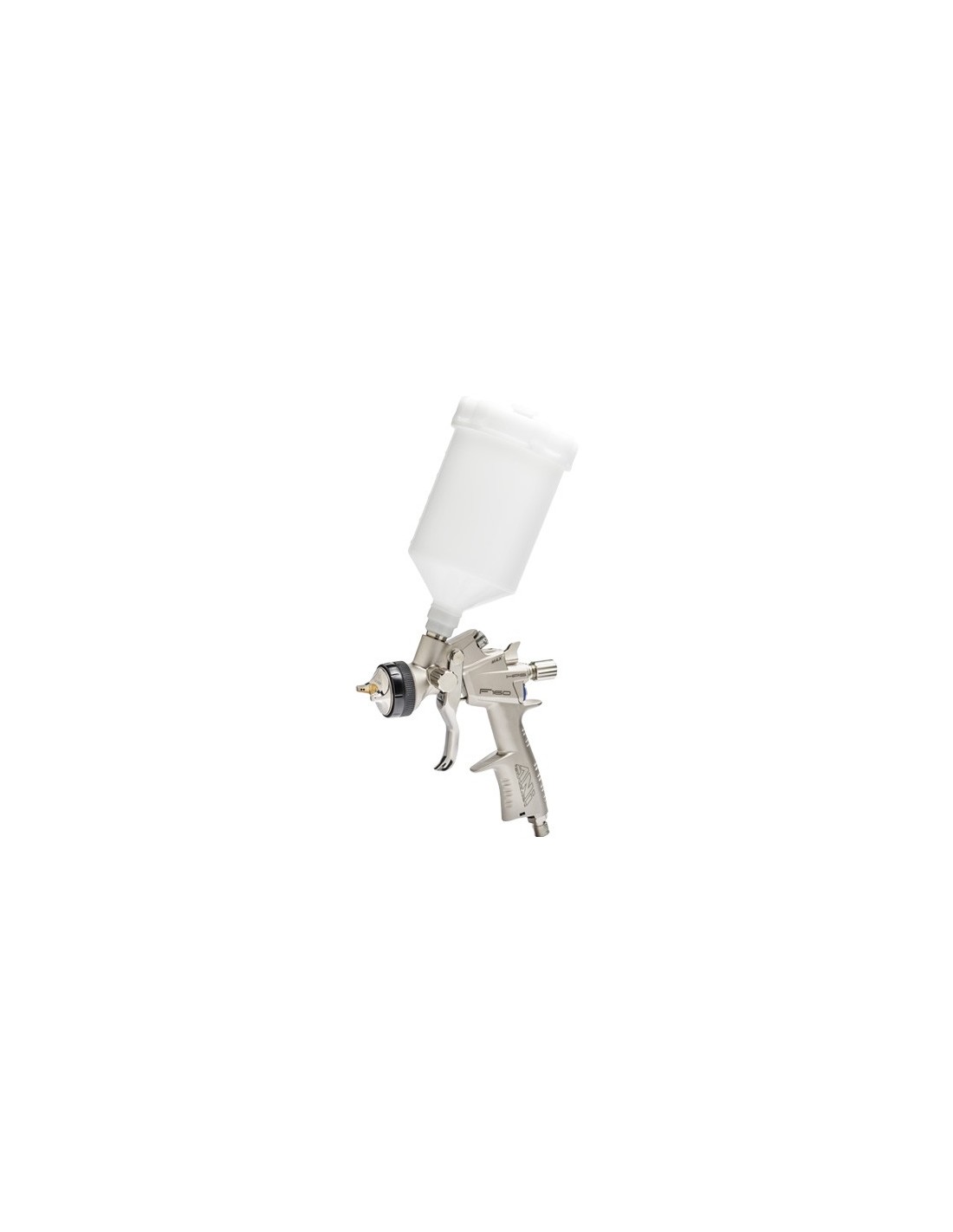

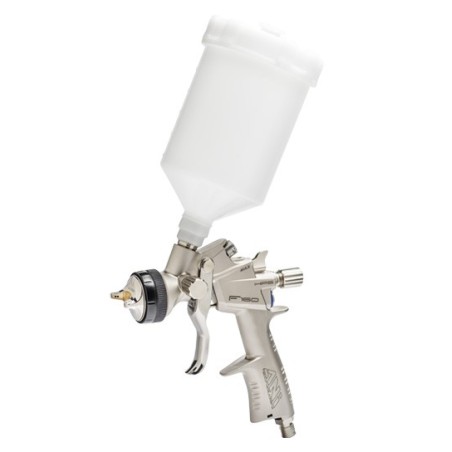

The ANI F160/S HPS is designed specifically for professional use in automotive body shops and industrial coating applications. Thanks to its lightweight construction and ergonomic shape, the tool ensures complete comfort and minimizes hand strain during prolonged use. The spray gun utilizes patented technologies from A.N.I. Italy: HPS, for highly efficient atomization of solvent-based materials, and CLEAR, for the precise application of clear coats.
Key Features and Benefits:
HPS and CLEAR Technologies: These ensure exceptionally fine, homogeneous paint atomization with minimal overspray and a high material transfer rate onto the surface.
Protected Aluminum Body: Crafted from die-cast aluminum, the body features an internal chemical nickel treatment and an external electrolytic coating. These protect the gun against corrosion and aggressive solvents while also facilitating easier cleaning.
Plastic Gravity Cup (600 ml): A convenient, lightweight top-mounted reservoir equipped with an FV/S-5000 filter to trap impurities and particles prior to application.
Stainless Steel (AISI 303) Needle and Nozzle: These components ensure exceptional durability, a long service life, and complete resistance when working with solvent-based products. Nickel-plated brass air cap: Designed to produce a stable and uniform spray pattern during painting.
Application based on nozzle selection:
1.3 CLEAR nozzle: Specially developed for the flawless, mirror-like application of clear coats.
1.5 HPS nozzle: A versatile size for applying base coats (metallics/pearls) and clear coats.
1.7 HPS nozzle: Ideal for the even application of filler primers and spray fillers.
Technical specifications:
Manufacturer: A.N.I. (Italy)
Model: F160/S
Technology: HPS / CLEAR
Cup capacity: 600 ml (plastic cup with FV/S-5000 filter; 3/8" M BSP connection)
Optimal working pressure: 2.5 bar
Air consumption: 220 L/min
Air connection: Universal 1/4" BSP
Available nozzles: 1.3 CLEAR / 1.5 HPS / 1.7 HPS
