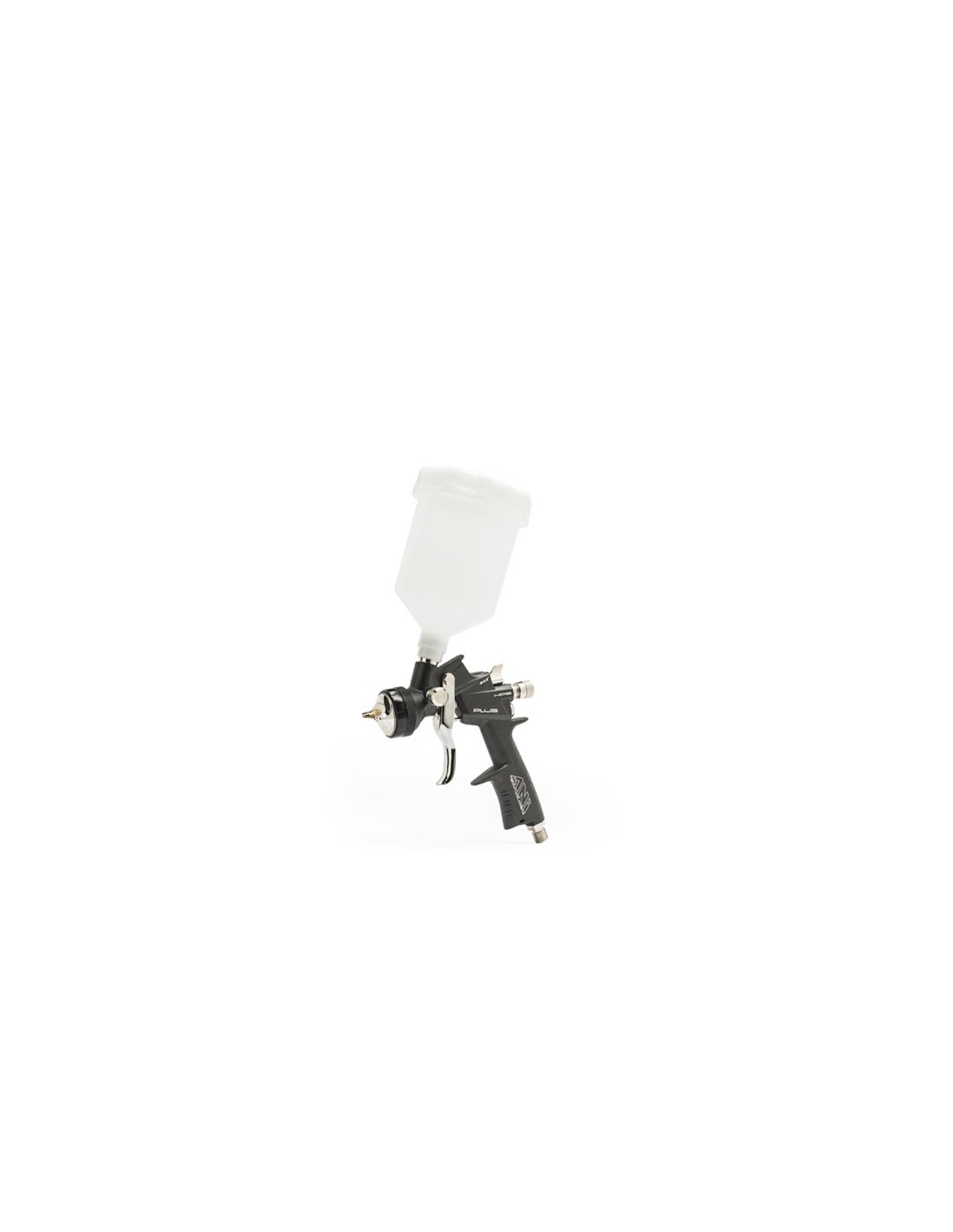

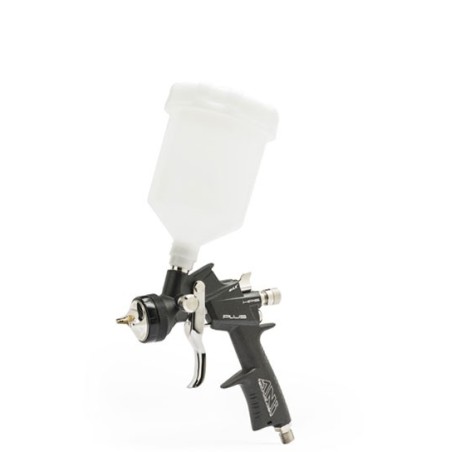

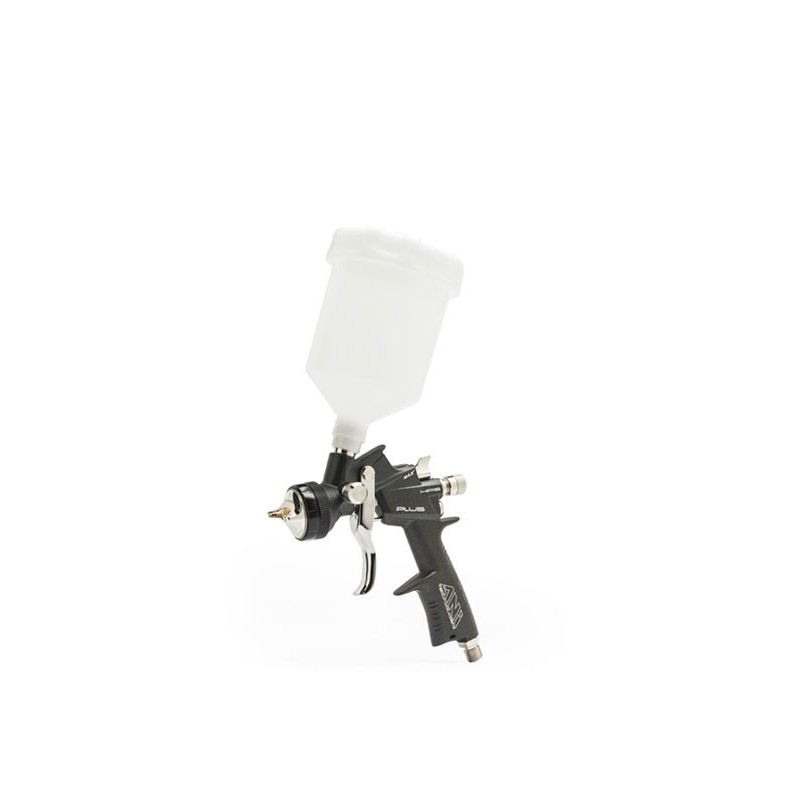

The ANI F160-Plus/S HPS is a high-end Italian spray gun designed to deliver maximum efficiency and a flawless finish for automotive and industrial painting applications. This model utilizes A.N.I. Italy’s patented HPS (High Performance System) technology, which outperforms standard HVLP technology in terms of material transfer efficiency and atomization fineness.
Key Features and Benefits:
HPS Technology: Ensures an exceptionally high level of atomization and paint savings, with a transfer efficiency that exceeds European environmental standards.
Die-cast aluminum body with a PTFE (Teflon) coating: Provides superior resistance to aggressive solvents, corrosion, and mechanical wear, while making the tool quick and easy to clean.
Nickel-plated brass air cap: Engineered to produce a uniform, stable, and consistent spray pattern.
Precision needle and nozzle made of stainless steel (AISI 303): Ensure exceptional durability and full compatibility with both solvent-based and waterborne paint systems.
Ergonomics and balance: Its low weight and optimal weight distribution ensure comfort, even during extended use in the spray booth. Nozzle Selection and Application:
1.3 mm and 1.4 mm nozzles: Ideal for applying basecoats (metallics/pearls) and clearcoats.
1.7 mm, 1.9 mm, 2.2 mm, and 2.5 mm nozzles: Suitable for applying filler primers, spray fillers, and high-viscosity coatings.
Technical Specifications:
Brand / Manufacturer: A.N.I. (Italy)
Model: F160-Plus/S
Technology: HPS (High Performance System)
Cup Capacity: 600 ml (plastic, gravity-feed)
Optimal Working Pressure: 2.5 bar
Air Consumption: 220 L/min
Air Connection: Universal 1/4" BSP
Cup Connection: 3/8" M BSP
