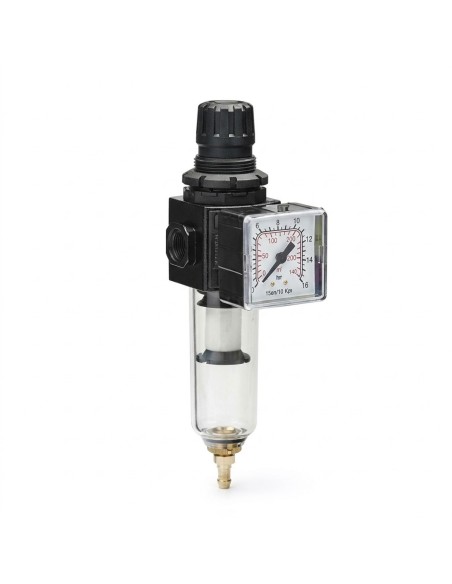

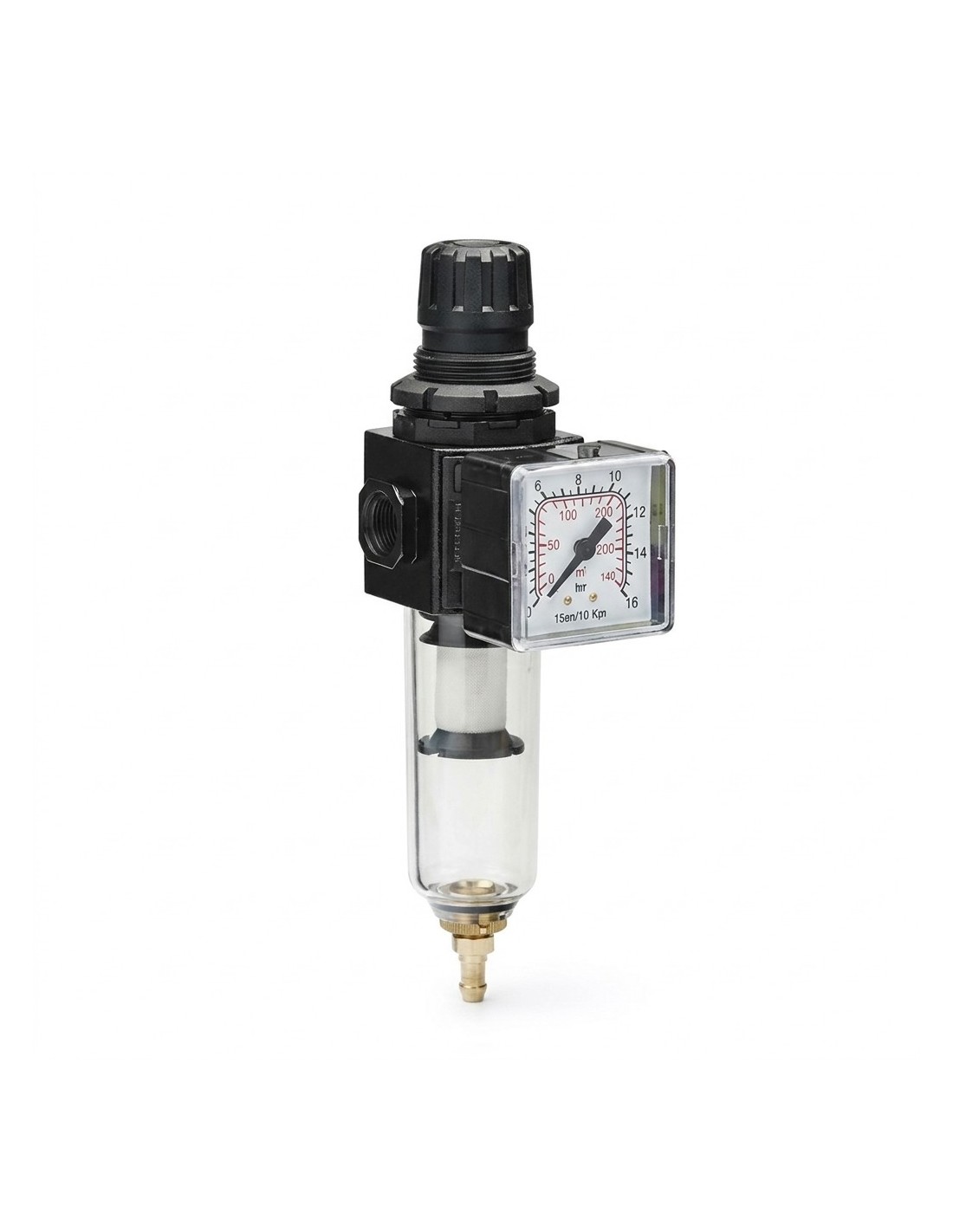

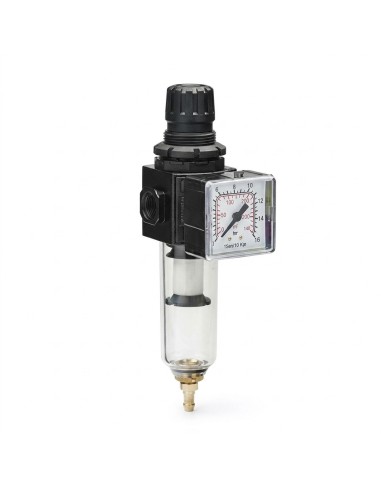

ANIME/14 – Compact 1/4" compressed air filter-regulator

The ANI E/14 is a high-quality "2-in-1" combination unit that integrates a compressed air filter with a precision pressure regulator and a pressure gauge. This component is essential for any automotive paint shop or pneumatic system, as it ensures a supply of clean, dry air and consistent operating pressure for spray guns and pneumatic tools.

Key Features and Benefits:

Combined Functionality (2-in-1): Saves space and simplifies installation by integrating a filter bowl and a pressure-regulating valve into a single, compact housing.

Effective Filtration (down to 40 microns): Reliably captures dust particles, rust, and mechanical impurities, preventing them from contaminating the paint or entering the internal mechanisms of tools.

Condensate and Moisture Separation: Efficiently removes water condensate from the air line—a crucial step for preventing paint defects such as craters (fish-eyes).

Semi-Automatic Drain Valve: Facilitates the draining of accumulated liquid from the transparent bowl whenever the system pressure is released.

Precision Pressure Gauge: Equipped with an easy-to-read gauge (scaled from 0 to 16 bar), allowing for precise adjustment of the operating pressure to meet specific tool requirements.

Transparent Reservoir: Enables quick visual monitoring of the accumulated condensate level and the condition of the filter element. Technical Specifications:

Model: ANI E/14 Mignon

Thread / Connection: 1/4" F BSP (female thread)

Filtration Grade: 40 µm (microns)

Condensate Drain: Semi-automatic

Pressure Gauge Range: 0 – 16 bar

Application: Air supply lines for paint booths, compressors, and pneumatic tools.
